Norbar products are manufactured in the factory in Banbury, England. The factory's ISO 9001 certification is key to providing good customer service worldwide.
0256

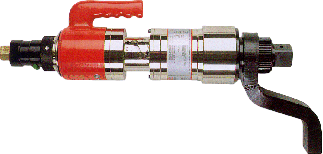

These 'Pneutorque' models share the same features as the 'Standard' series, but have a higher torque output for a given gearbox diameter. Two Speed Models offer all of the advantages of single speed versions but with the additional benefit of a run down speed five times greater than the final torque speed. The Manual Two Speed gearbox can enhance the degree of control that the operator has over the tightening process, as the gear speed can be changed manually.
Technical SpecificationSquare Size: 1"Max Air Pressure: 4.4 barVel Ratio Low Speed: 885.185:1Vel Ratio High Speed: 162.284:1Free Run Low Speed: 5 revs/minFree Run High Speed: 25 revs/minAir Consumption: 19 litres/secTool Weight: 18 KgReac Plate Weight: 2 KgFeaturesElectronic torque transducers can be fitted for precise torque monitoring.Reaction foot can slide on the spline to allow for sockets of various lengths.Reduced diameter allows improved access.High torque output - up to 5500 N·m.Reversible - Pneutorques can be used for tightening and untightening.
