Pneumatic Multiplier, 2000 N.m, Forward, Stall, 1" square drive; Pneutorque PTME-72-200-F

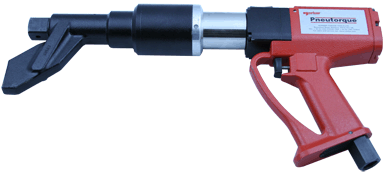

Model Shown: PTME-72-1000 Bi-Directional

The PTME-72 series of tools was designed to meet the needs of the commercial vehicle wheel market.

The integrated reaction foot is designed specifically to reach recessed wheel bolts and the 72mm diameter gearbox is selected to cope with the high frequency of use demanded by busy tyre shops.

Also available as Internal and External Control, Shut-Off versions.

Product's part number:	18141.F08
Product's NATO number:
Product's Accuracy:	+/-5%
Operates between:	295 - 1475 lbf.ft 400 - 2000 N.m

Technical Specification

Square Size: 1"
Max Air Pressure: 6.3 bar
Air Consumption: 19 litres/sec (40 CFM)
Tool Weight: 7.4 kg
Free Speed: 70 rpm

Features

Fast - 1000 N.m version has a free speed of 140 rpm for rapid bolt run-down.
Light weight, for ease of handling.
Extended reaction is ideal for reaching recessed nuts.
Quiet - less than 85 dB(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
'Soft Start' trigger control aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
