(Obsolete) Rundown Fixture (including Bench Stand) for ETS/DTS, with sliding base plate fixture, 500 N.m

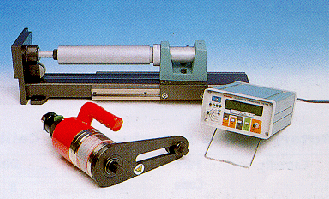

Rundown Fixture Model 50133 with Transducer, ETS and Pneutorque Wrench

The Norbar Rundown Fixtures are designed to simulate the working conditions of screwed or bolted joints. Used in conjunction with a Norbar transducer and display instrument (ETS or DTS), the output of torque controlled power tools can be measured against a range of simulated joint rates, from hard through to soft. Note: Rundown Fixtures include a bench stand for mounting a suitable Norbar transducer. If the bench stand is already available, please see Rundown Nose Assemblies.

Product's part number:	50133
Product's NATO number:
Product's Accuracy:
Operates between:	100.0 - 500.0 N·m

Technical Specification

Weight: 40 Kg
Square Drive: 3/4"
Hex Drive A/F: 19 mm
Washer Stacks: B
Sliding Base Plate: Yes

Features

Suitable for a wide variety of power tools including pneumatic/electric screwdriver and angle wrenches with either clutch or stall torque control.
Spring washers and full instructions are provided to simulate a wide range of joint types as detailed in: BS 6268:1982, BS 6544:1981 and ISO 5393:1981.
Models available for torques from 0.2 N·m to 500 N·m.
Incorporates a sliding base plate fixture.

Downloads:

AutoCAD Outline Drawing

Metafile Outline Drawing

Operators Handbook
