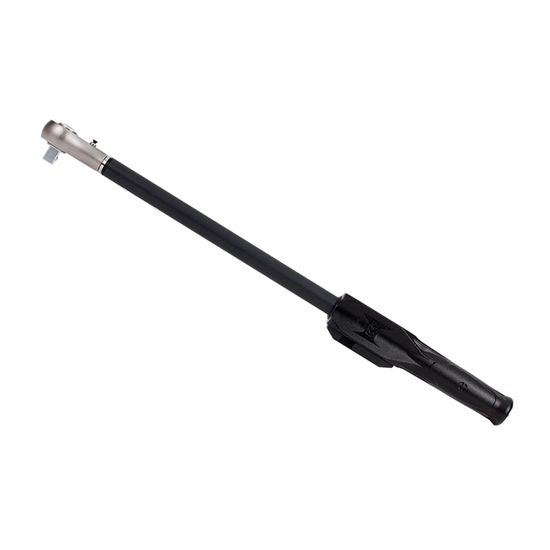

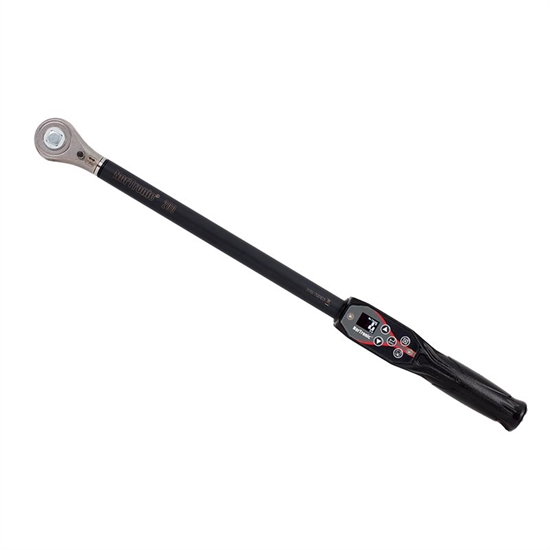

The NorTronic®, Norbar's electronic torque wrench, sets the benchmark with its unique Torque Data System (TDS) software and combination of accuracy, wireless capability and angle measurement, in a versatile, robust and easy to use package.
- Part number:
43536
- EAN Bar Code:
5060207563574
- NATO number:
-
- Accuracy:
See Text Below
- Operates between:
20.00 -
200.00
N·m
Compare Products
Please select further products to compare.
- Features
-
Test results are time and date stamped for traceability
-
Two full colour OLED displays positioned at 90 degrees for great visibility
-
Colour indicator on display changes when target torque/angle has been reached
-
Audible and vibration feedback when set target of torque/angle has been reached
-
Torque calibration in both Clockwise and Anti-clockwise direction
-
Ability to have up to 15 linked or non-linked targets on the tool at any one time
-
Ability to set a Torque, Angle and Final Torque Target
-
Directly display, save and send the output Torque of a HT (Hand Torque) gearbox when used in conjunction with a NorTronic
-
Send up to 15 sequential or non-sequential targets to a NorTronic Tool
-
Real time graph creation from a USB connected tool
-
Create a report from stored results
-
Supplied with a Calibration Certificate, which meets the requirements of ISO 6789-2:2017
-
Bluetooth® interface with plaintext protocol for easy integration into user environments; set targets, get results and stream live torque and angle data using your own software and equipment on phones, computers, tablets and more, via Bluetooth® or USB
-
ASCII mode for interfacing to third party control systems
-
TDS (Torque Data System) software included for complete data management and archiving to a PC. Includes seamless data synchronisation (USB only)
- Technical Specifications
-
Length: 593 mm
-
Square Size: 1/2"
-
Weight: 1.45 Kg
-
±1% accuracy between 20 and 100% of wrench operating capacity
-
±2% accuracy between 10 and 19% of wrench operating capacity
-
Estimated Net Weight: 3.65 kg
-
Estimated Gross Weight: 4 kg
-
Estimated Dimensions: 80 (W) x 15 (H) x 13 (D)
