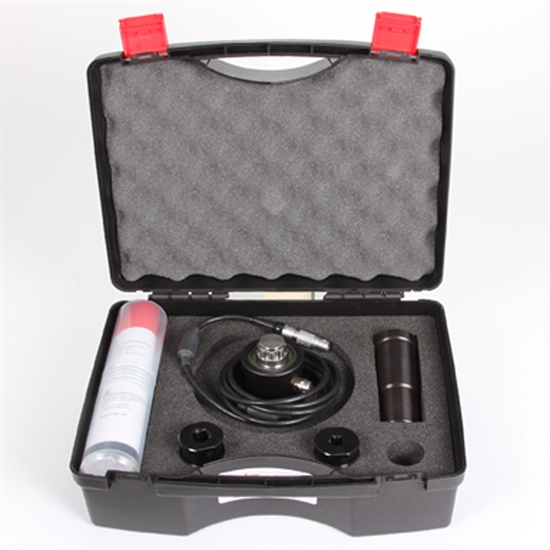

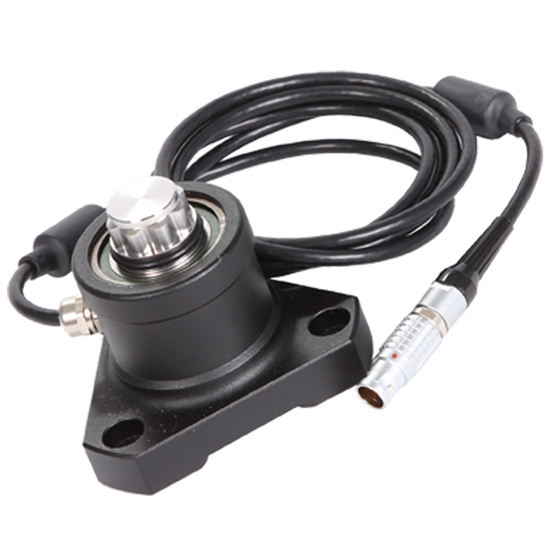

'SMART' FMT, 100 lbf.ft, 1/2" & 3/8" sq. dr. with Joint Simulator; mV/V

Flange Mounted Transducers incorporate mounting points for securely fixing the transducer to the working surface. The transducer lead is also included and is fitted with a high quality Lemo® connector.

Part number: 50680.IND
EAN Bar Code: -
NATO number: -
Accuracy: ±0.5%
Operates between:
5.00 - 100.00 lbf·ft

  • Accuracy: Class 1 for the primary classification range (+/-0.5% of reading).
  • 'SMART' - TST, TTT, TTL-HE and T-Box instruments will automatically recognise calibration details.

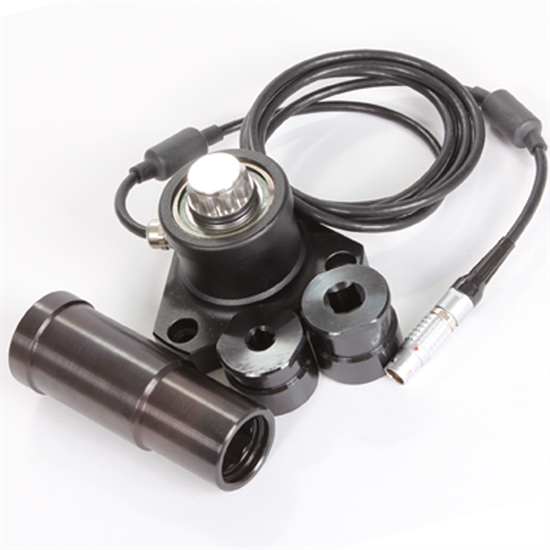

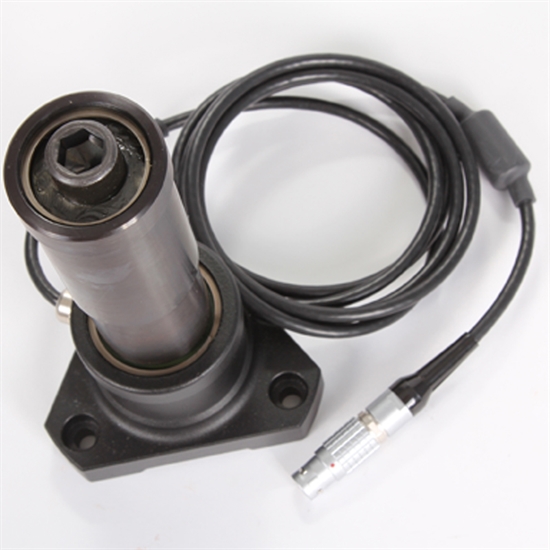

  • Rundown Fixture is included allowing joint simulation for power tool testing.
  • Supplied with UKAS calibration certificate.
  • Transducer has a 22mm Male Bi-Square drive and is supplied with a precision made square drive adaptor

  • Weight: 2.79 Kg
  • Temp Range Operating: -10°C to +50°C
  • Temp Range Storage: -20°C to +70°C
  • Thermal Effect On Span: < +/- 0.03%/°C
  • Thermal Effect On Zero: < +/- 0.01%/°C
  • Torsional Deflection: < 1°
  • Fatigue: > 10 exp 7 cycles
  • Maximum Torsion Capacity: 150%
  • Connector: Lemo®
  • Drive 1: 1/4"
  • Drive 2: 1/2"
