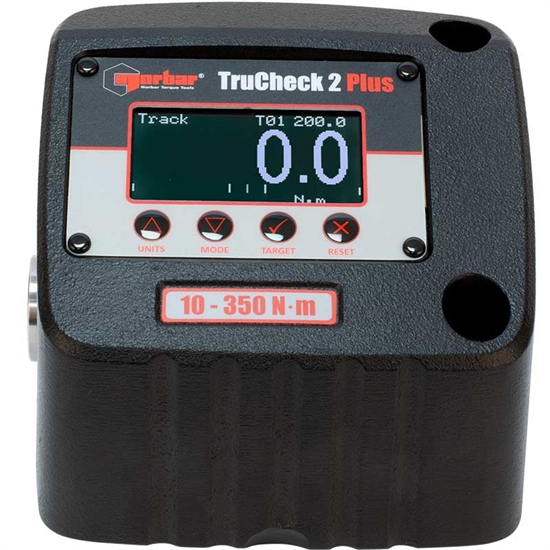

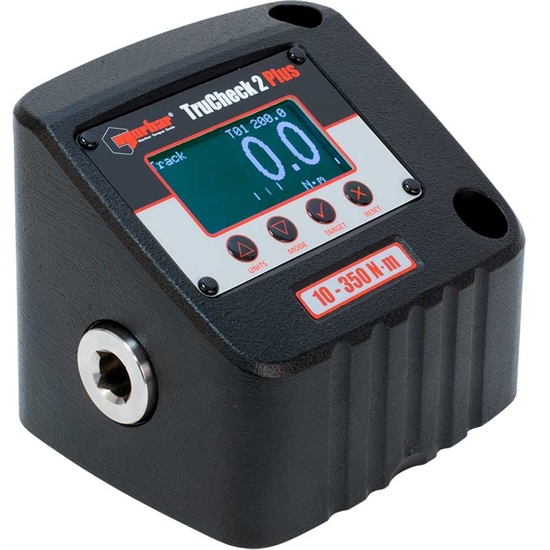

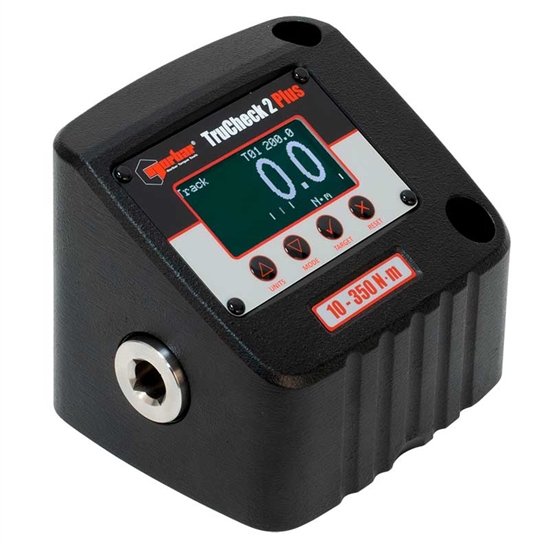

TruCheck 2 Plus, 10 - 350 N·m

TruCheck™ 2 is a cost effective torque wrench checker that has been redesigned to incorporate improved features whilst maintaining ease of use.

The TruCheck™ 2 aims to cut the cost of purchasing a torque wrench checking system and remove the fears over the complexity of using such equipment.

Part number: 43525
EAN Bar Code: -
NATO number: -
Accuracy: -
Operates between:
10.00 - 350.00 N·m



  • Allows torque tool performance to be monitored and tools kept in peak condition.
  • Allows a selection of torque units, three modes of operation (Click, Dial and Track), the ability to store up to 15 targets and select from 12 languages
  • Allows operator to set a target value and tolerance
  • Inbuilt Micro USB 2.0 port enables power from any USB power source. Plus versions allows for both power and data transfer simultaneously
  • Supplied as standard with a traceable calibration certificate in a clockwise direction only

  • Weight: 2.6 Kg
  • Accuracy: ±1% torque reading accuracy (±2% when below 10% of range for the 1,100 N·m TruCheck™ 2 model)
  • Display: LCD Display
  • Temp Range - Operating: 0°C to +50°C
  • Temp Range - Storage: -20°C to +70°C
  • Auto Reset Hold Time: 1,2 or 3 seconds
  • Power Consumption: 0.5W
  • Electromagnetic Compatibility (EMC) Directive: Designed to comply with EN 61326-1
  • Supplied with 27 mm male hexagon plus 3/4" square drive socket
  • Requires two Hexagon Socket Head Cap Screws ISO 4762 - M10 - 12.9 to fix in position (not included)
  • UKAS accredited calibration is optional
  • Environment: IP 40
