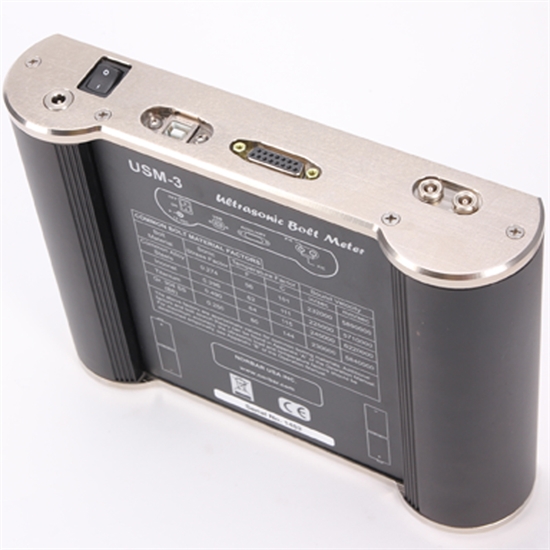

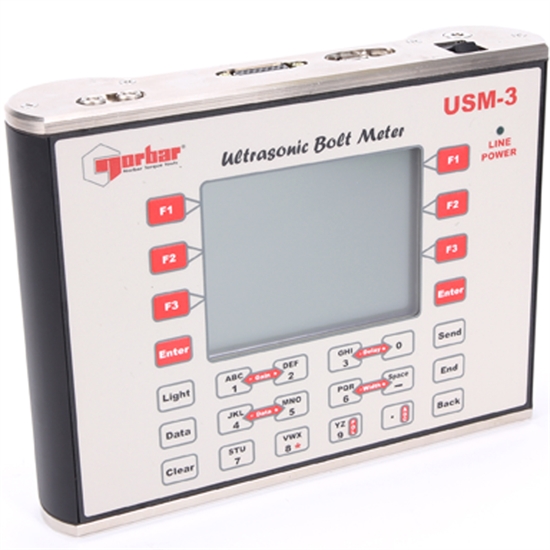

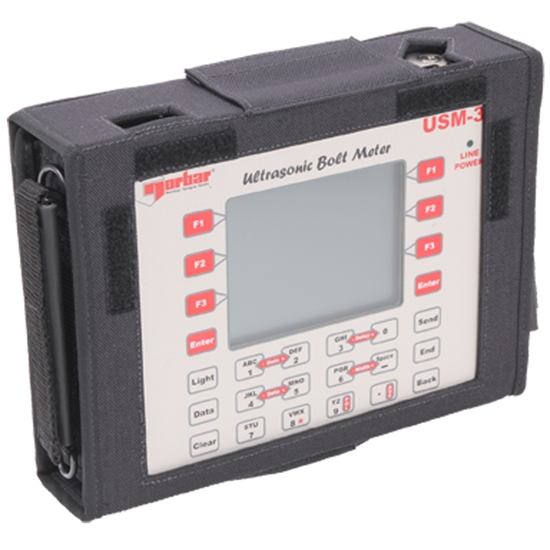

The Ultrasonic Stress Meter - USM-3 is a hand held instrument including; AC adaptor, nylon carrying case, storage case, transducer cable, RS232 data transfer cable, 4 oz couplant and operation manual.

Requires Transducer which is sold separately.

Overview of Ultrasonic Measurement

The following series of Web pages presents an 'Overview of Ultrasonic Measurement' of fasteners. Ultrasonic measurement provides a very precise method of determining the elongation of a fastener due to tightening. This elongation is proportional to the load force exerted on the fastener.


Required Equipment

Bolt Preparation

Calibrating the Ultrasonics

Measuring the Unloaded Lengths

Measuring the Elongation

Producing Reports


Sonic Bolt Utility Software

The USM-II can produce reports by sending data over its RS-232 port.

The reports can be sent to a printer directly, to a computer using a communications port, or to a computer using the SonicBolt Software. The report format is designed to be imported into a spreadsheet software for creating graphs and data analysis.

Install SonicBolt Utility Software v2.1e

This program is for use with the Norbar USM instrument only and is provided without warranty of any kind. Norbar makes no claim to it's suitability or use and shall not be liable for any damages whatsoever caused by installation or use of the software.

Part number: 40334
EAN Bar Code: -
NATO number: -
Accuracy: -
Operates between:

  • Resolution: 5 digit
  • Large 1/4 VGA back lit display is easily visible from a distance and in poor light.
  • Can store up to 2000 measurements.
  • Rugged steel and aluminium case designed for production and site environments.

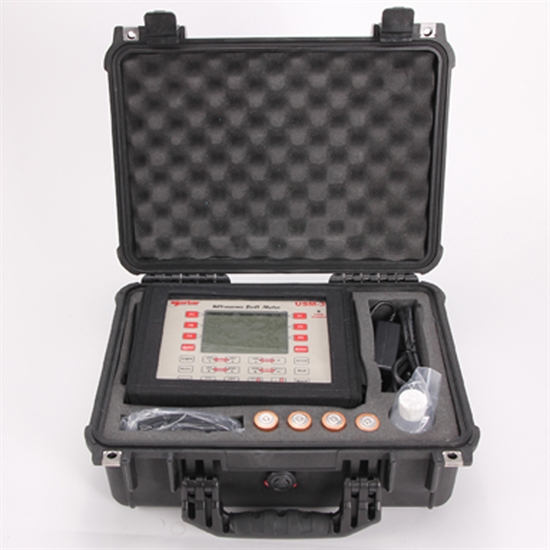

  • USM 3 is supplied in a rugged water tight (Pelican(R)) case complete with AC adaptor, nylon carrying case, 6' transducer cable, RS232 data transfer cable, 4 oz bottle of couplant and operation handbook.
  • Measures fasteners of virtually any material from 1/2 inch (12mm) to over 50 feet (17m) in length.
  • 0 - 10V analogue output for control of tightening tools such as a Norbar Pneutorque multiplier.
  • Measurement modes of pitch-catch and pulse-echo.
  • Unit can be operated with mains power supply or via 4 'C' cell batteries.
  • Sealed membrane keypad with tactile keys.
  • Works with magnetic and glue on transducers from 1 MHz to 10 MHz.

  • Weight: 2.25 Kg (4.95 lb) with batteries.
  • Estimated Dimensions: 180 mm high x 239 mm wide x 53 mm deep.
  • Accuracy of Elongation:: +/-0.0003 in (+/-0.008 mm) or 0.001% of reading if greater.
