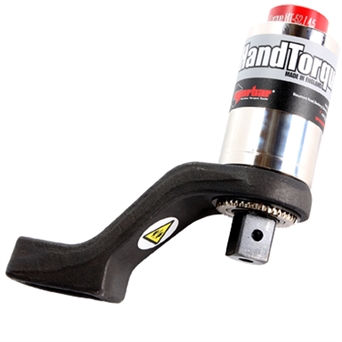

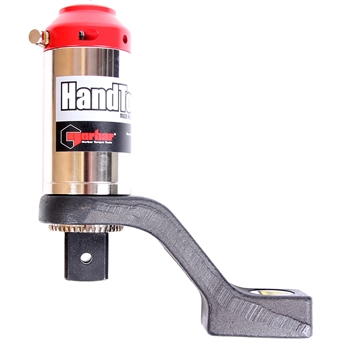

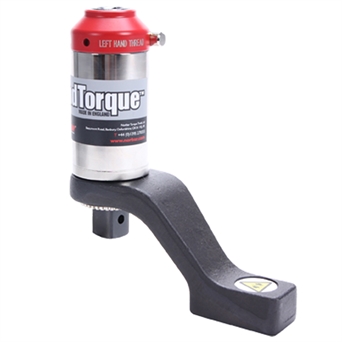

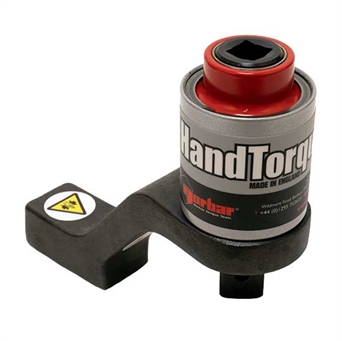

Compact Series HT-52

Compact dimensions of 52mm allows excellent access and easy, safe handling for torques up to 1000 N·m.
Accuracy of better than +/-4%, guaranteed.
Anti Wind-Up Ratchet available, for easier and safer operation.
Available in either 4.5:1 or 22:1 with either 3/4" or 1" output square drives.
A variety of alternative reaction styles are available for maximum versatility.
Engineered to Order reaction accessories are also available, see examples.

HT-52/4.7 1000 N·m, 1/2" in, 3/4" out

HT-52/22.2, 1000 N·m, 3/8" in, 3/4" out

HT-52/22.2, 1000 N·m, 1/2" in, 3/4" out

HT-52/22.2, 1000 N·m, 3/8" in, 3/4" out, AWUR

HT-52/22.2, 1000 N·m, 1/2" in, 3/4" out, AWUR

HT-52/22.2, 1000 N·m, 3/8" in, 1" out, AWUR

HT-52/22.2, 1000 N·m, 1/2" in, 1" out, AWUR
